Product Name | Aluminium-Plastic Combination Caps Crimp Vial Caps |
Usage | antibiotics, injection, infusion, oral solution or other packaging |
Stock size | 7.5mm/11mm/13mm/15mm/20mm/28mm/32mm/34mm |
Material | aluminum alloy 8011, H16 with coating |
Sterilization method | Radiation sterilization, Ethylene Oxide(EO) |
MOQ | 10,000pcs |
Productivity | 3million pieces per day |
Logo and sizes | can be customized |
Workshop | 100000 class cleaning workshop meets the GMP standard |
Colorful caps | any color can be customized |
Sample and courier fee | free |
Inner packaging | PE bag |
Outside packaging | 5 layers strong corrugated carton |
Pallet packaging | Be offered |
Payment terms | L/C, D/A, D/P, T/T, Western Union, ESCROW, e-Credit Line. |
Certificates | ISO15378, ISO9001, ISO14001, ISO15378, SFDA, CE |
Product Features

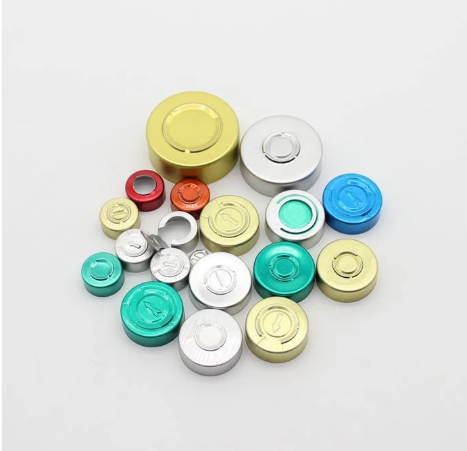

◆ Acrimp top seals are mostly used for antibiotic powder injection and some veterinary medicine powder injection. Divided into Two connection point type, three connection point type, single arrow split type, no connection point type, the main type has 13mm, 20mm, 32mm, 34mm, other sizes can be customized.
◆ The conventional color is silver or gold, other color can also be customized according to customer requirements.
◆ Cover surface coating, can withstand 121℃ high temperature sterilization without deformation, delamination.
◆ We can do customized logo for you.
◆ Produced in grade C clean workshop, the aluminum cover is washed with purified water and dried at high temperature to meet customers' direct use.
| Crimp top seal | |||||||||||||
Brand | Component (not more than) | ||||||||||||
Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Pb | As | Cd | others | Al | |
8011 | 0.4-0.8 | 0.5-1.0 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.05 | 0.01 | 0 | 0.01 | 0.15 | surplus |
Crimp top seal, normal caps dimension: | ||
Specification | Inner diameter(mm) | Inner height(mm) |
13mm crimp top seal | 13.3 ±0.1 | 6.3 ±0.1 |
20mm crimp top seal | 20.3 ±0.1 | 7.3 ±0.1 |
28mm crimp top seal | 28.6 ±0.1 | 10.2 ±0.1 |
32mm crimp top seal | 32.6 ±0.1 | 12.5 ±0.1 |
